Understanding Mercedes Sprinter internal dimensions proves essential for tradespeople planning storage installations, evaluating material transportation capabilities, or assessing operational suitability for specific business requirements. This premium commercial vehicle offers exceptional configurability across three wheelbase lengths, three roof heights, and multiple body styles creating cargo volumes from 7.5 to 17 cubic meters. This comprehensive guide examines precise measurements across popular Sprinter variants, practical load capacity considerations, and strategic storage planning enabling informed decisions maximizing this capable platform's substantial commercial potential.
Wheelbase and Body Configuration Options
Available Size Variants
Mercedes offers Sprinter in three wheelbase lengths creating diverse operational capabilities. Short wheelbase (3,259mm) suits urban operations prioritizing maneuverability, medium wheelbase (3,665mm) balances capacity against accessibility, whilst long wheelbase (4,325mm) maximizes cargo length for operations transporting extended materials or substantial inventory volumes.
Three roof heights further enhance configurability—standard (H1) at 1,695mm suits multi-story access, high roof (H2) at 1,940mm enables standing workspace, whilst super-high roof (H3) reaches 2,170mm creating generous vertical storage. Combined configurations produce nine distinct variants addressing virtually any commercial requirement from compact urban delivery to mobile workshop applications.
|
Configuration |
Wheelbase |
Roof Height |
Cargo Volume |
|
311 CDI SWB Standard |
3,259mm |
1,695mm (H1) |
7.5m³ |
|
314 CDI MWB High |
3,665mm |
1,940mm (H2) |
11m³ |
|
316 CDI LWB High |
4,325mm |
1,940mm (H2) |
13.5m³ |
|
319 CDI LWB Super High |
4,325mm |
2,170mm (H3) |
17m³ |
Internal Cargo Dimensions by Variant
Short Wheelbase Specifications
SWB variants provide 2,427mm load length, 1,780mm maximum width, and 1,395mm internal height (H1 standard roof). This configuration suits urban trades requiring excellent maneuverability whilst maintaining adequate tool storage capacity. Width between wheel arches measures 1,380mm accommodating euro pallets lengthways or single-side comprehensive shelving installations. The mercedes vito van racking shelves driver or passenger side demonstrates storage concepts for compact Mercedes platforms.
Payload capacity typically ranges 900-1,100kg depending on specific model and optional equipment fitted. This modest capacity suits service operations, electrical contractors, and light delivery applications prioritizing organized tool storage over bulk material transportation. For systematic organization, explore our Mercedes collection featuring vehicle-specific solutions.
Medium Wheelbase Configurations
MWB variants extend load length to 2,837mm whilst maintaining 1,780mm maximum width and offering 1,662mm (H2) or 1,892mm (H3) internal heights. The additional 410mm length versus SWB creates substantially improved material accommodation capabilities without significantly compromising urban maneuverability through 13.9-meter turning circle.
Payload capacity increases to 1,000-1,300kg across MWB variants supporting more demanding operational requirements. The mercedes vito van rack tool box storage shows toolbox integration approaches, whilst the mercedes vito racking made for euro stacking container super wide demonstrates container-optimized designs applicable to Sprinter platforms.
Long Wheelbase Specifications
LWB configurations achieve impressive 3,487mm load length enabling transportation of extended materials including plumbing pipes, timber lengths, and scaffolding components without roof rack requirements compromising fuel efficiency. Maximum width maintains 1,780mm with 1,380mm between wheel arches, whilst roof height options span 1,662mm (H2) to 1,892mm (H3) creating 13.5-17 cubic meters cargo volume.
Payload capacities reach 1,200-1,500kg depending on specific model variant, suspension configuration, and optional equipment. This substantial capacity supports building trades, comprehensive mobile workshops, and operations regularly approaching maximum legal loading limits whilst maintaining organized systematic storage.
Practical Loading Dimensions
Door Aperture Measurements
Rear door openings measure approximately 1,391mm width by varying heights matching internal roof configurations—1,383mm (H1), 1,650mm (H2), or 1,880mm (H3). These generous apertures enable upright loading of assembled equipment, tall materials, or bulky items without requiring awkward angling or disassembly operations wasting valuable job site time.
Optional sliding side doors available both sides measure approximately 1,254mm width by heights varying with roof configuration. Side door access proves invaluable for urban operations where parking restrictions prevent convenient rear access, enabling equipment retrieval without navigating around vehicles through congested streets. The mercedes vito racking system for euro stacking containers maintains side door accessibility whilst maximizing storage density.
Floor and Wheel Arch Configuration
Load floor height measures approximately 550-600mm from ground level depending on suspension specification, enabling comfortable loading without excessive lifting. The relatively low floor proves advantageous for operations regularly handling heavy items or bulk materials requiring frequent loading cycles throughout daily operations.

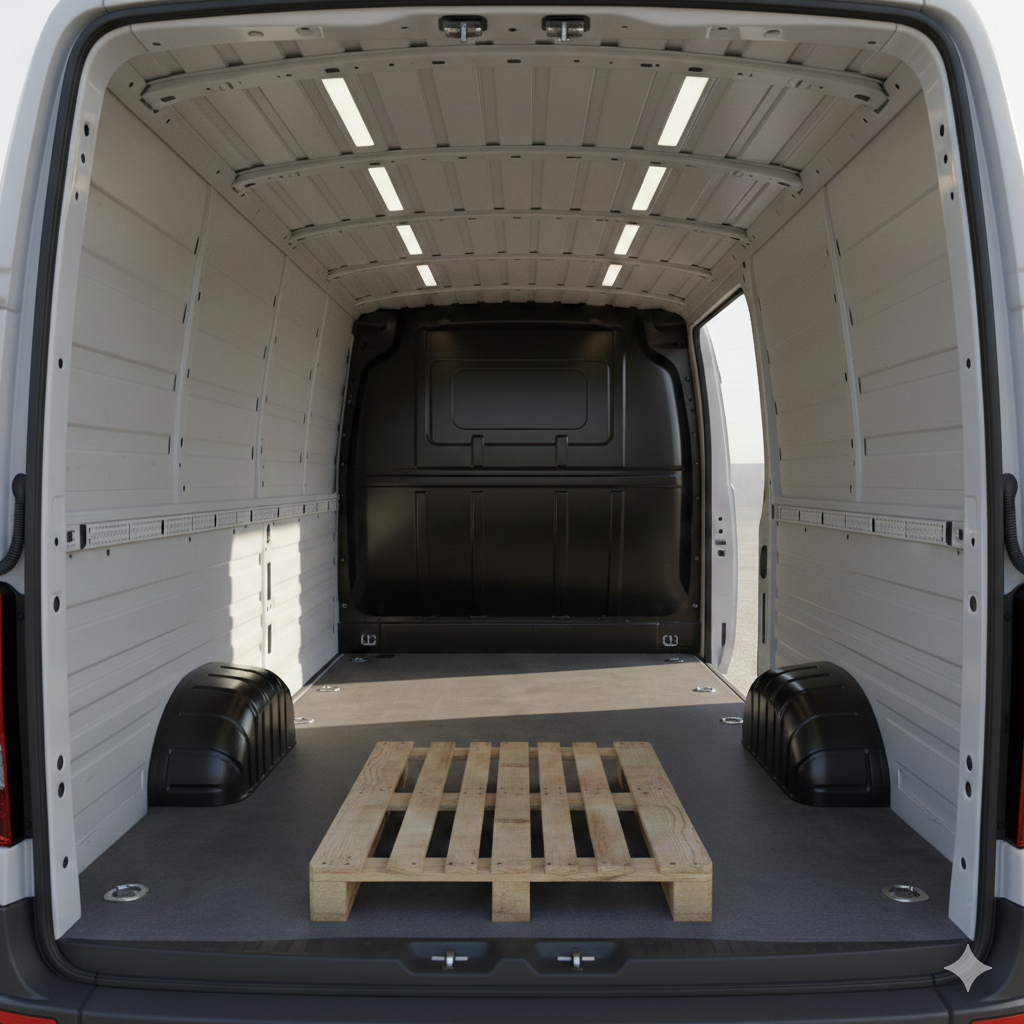

Width between wheel arches maintains consistent 1,380mm across all variants, accommodating standard euro pallets lengthways or enabling effective single-side shelving installations. Maximum floor width at bulkhead reaches 1,780mm, though tapers slightly toward rear doors following body contours. Understanding these dimensional variations ensures storage systems optimize available space without creating interference issues.
Weight and Payload Considerations
Gross Vehicle Weight Ratings
Sprinter variants span multiple GVW ratings from 3,000kg to 5,000kg addressing diverse operational requirements. Standard 3.5-tonne models require only standard driving licenses, whilst higher GVW variants necessitate Category C1 licensing but deliver substantially enhanced payload capabilities supporting demanding commercial applications.
Calculate total operational weight including storage installation materials (typically 150-300kg), comprehensive tool inventories, anticipated cargo loads, and driver/passenger weights ensuring compliance with vehicle ratings. Exceeding GVW limits compromises safety, accelerates component wear, and potentially violates commercial vehicle regulations risking substantial penalties and insurance complications.
Payload Optimization Strategies
Lightweight storage systems prove essential maximizing usable payload for operational cargo rather than structural infrastructure. Aluminum frameworks combined with quality plywood shelving balance durability against weight efficiency, whilst strategic component selection eliminates unnecessary features consuming precious payload capacity without delivering proportional operational benefits.
Position heaviest items low and centered between axles maintaining balanced weight distribution optimizing handling characteristics, minimizing tire wear, and maximizing fuel efficiency. The ford transit custom swb van racking with full driver side storage demonstrates weight distribution principles applicable across commercial platforms.
Storage Solution Planning
Vertical Space Utilization
High and super-high roof variants enable comprehensive multi-level shelving creating substantial organized capacity. Four or five shelf tiers accommodate varying equipment heights whilst maintaining ergonomic access to frequently used items positioned at optimal working heights reducing physical strain during daily operations. Visit Van Shelves for comprehensive guidance matching storage solutions to specific requirements.
Position frequently accessed tools and materials at waist-to-shoulder heights minimizing reaching and bending, whilst seasonal equipment or infrequently used items occupy upper shelves maximizing total storage density. Lower shelves accommodate heaviest tools maintaining low center of gravity optimizing vehicle dynamics and safety characteristics.
Modular System Benefits
Quality modular storage enables progressive expansion matching business development without requiring complete system replacement. Start with fundamental configurations addressing immediate requirements, adding supplementary components systematically as operational capacity develops managing capital expenditure effectively whilst ensuring storage infrastructure remains relevant throughout business lifecycle.
Standardized mounting compatibility protects initial investments enabling cost-effective customization addressing evolving requirements. This flexibility proves particularly valuable for growing operations or businesses developing new service capabilities requiring different organizational approaches without substantial reinvestment in storage infrastructure.
Trade-Specific Applications
Building and Construction
General builders appreciate maximum Sprinter configurations accommodating substantial material stocks including plasterboard sheets, timber lengths, and bulky insulation whilst maintaining comprehensive tool organization. LWB super-high variants rival small rigid trucks whilst maintaining van licensing advantages and urban accessibility benefits. The ford custom 2023 toolbox racking storage demonstrates systematic organization principles.
High roof headroom enables interior workbench installations creating mobile workshops for equipment maintenance, component fabrication, or preparation work performed on-site without requiring access to fixed facilities. This capability proves particularly valuable for remote projects or operations covering wide geographic territories requiring self-sufficiency.
Electrical Contractors
Large electrical operations benefit from extensive cargo capacity accommodating comprehensive cable reel inventories, testing equipment collections, and substantial fixing assortments. Multi-level shelving systems organize varied cable sizes, fixing types, and terminal specifications maintaining categorical separation enabling rapid location without detailed searching directly improving job site efficiency.
Drawer systems integrated within storage frameworks organize small parts inventories preventing time-wasting searches whilst protecting sensitive components from damage during transit. The systematic approach transforms reactive problem-solving into proactive preparation improving customer service through reliable completion capabilities.
Plumbing Operations
Plumbers transporting diverse pipe lengths, extensive fitting collections, and power equipment benefit from long wheelbase configurations. Substantial cargo volumes accommodate material stocks reducing restocking frequency whilst maintaining organized inventory management. Euro container systems prove particularly effective organizing brass fittings, compression joints, and specialized components by type and size. For more insights, read our guide to van shelving systems.
Tube holder integration accommodates sealant cartridges and consumables essential for modern installations, whilst open shelving stores larger items including pipe wrenches and threading equipment. The comprehensive approach supports efficient operations minimizing job site delays from inadequate equipment or material availability.
Comparison with Competitor Platforms
Versus Ford Transit
The Sprinter typically offers superior build quality, refinement, and residual values versus Ford Transit equivalents, though at premium initial pricing. Dimensional specifications prove broadly comparable—Transit LWB high roof achieves 10.3 cubic meters versus Sprinter MWB H2's 11 cubic meters, whilst Transit ELWB jumbo rivals Sprinter LWB H3 configurations. Explore our ford collection for comparative storage solutions.
Mercedes typically commands 10-15% price premiums versus equivalent Transit specifications, though stronger residual values and lower maintenance costs often justify initial investments across typical fleet lifecycle periods. Superior refinement proves valuable for high-mileage operations where driver comfort directly affects productivity and staff retention.
Versus Volkswagen Crafter
The Volkswagen Crafter shares fundamental architecture with Sprinter creating broadly comparable dimensional specifications and operational capabilities. Pricing proves competitive between platforms, with selection often determined by dealer relationships, existing fleet standardization, or personal brand preferences rather than substantial capability differences.
Both platforms offer exceptional configurability, quality construction, and strong support networks throughout UK markets. Storage solutions prove largely interchangeable given architectural similarities, enabling fleet standardization across mixed Mercedes-Volkswagen operations without compromising organizational consistency.
Maneuverability and Urban Suitability
Turning Circle Analysis
Despite substantial dimensions, Sprinter maintains reasonable turning circles facilitating urban navigation. SWB variants achieve approximately 11.8 meters, MWB models require roughly 13.9 meters, whilst LWB configurations need approximately 15.5 meters. These specifications prove adequate for typical commercial operations including residential deliveries, construction site access, and urban service routes with appropriate spatial awareness.
Height awareness proves crucial for high and super-high roof variants preventing damage when entering multi-story facilities or navigating low-clearance restrictions. Plan routes considering height barriers, whilst roof-mounted warning devices alert drivers to overhead obstacles preventing costly damage to vehicle structures or fixed infrastructure.
Parking Considerations
Extended length requires longer parking spaces—LWB variants exceed 6 meters total length necessitating commercial vehicle spaces or multiple standard bays. Overnight storage considerations include secure compounds offering adequate maneuvering room and weather protection maintaining vehicle condition whilst deterring theft attempts through physical security and surveillance systems.
Reversing cameras and parking sensors significantly aid maneuvering particularly when backing into tight loading bays or navigating congested sites. Some operators install convex mirrors or additional camera systems improving visibility reducing accident risks when reversing in confined spaces common in urban commercial environments.
Conclusion
Mercedes Sprinter internal dimensions offer exceptional configurability addressing diverse commercial requirements from compact urban operations to comprehensive mobile workshops. Understanding precise measurements across wheelbase variants, roof heights, and body configurations enables informed decisions matching vehicle capabilities to specific operational needs whilst maximizing substantial cargo capacity through strategic storage planning. The premium platform delivers quality construction, strong residual values, and comprehensive support networks justifying investments for operations prioritizing long-term reliability and professional capability.
Optimize your Mercedes Sprinter with professional storage solutions from Van Shelves. Our vehicle-specific racking systems maximize available space whilst maintaining payload efficiency. Discover comprehensive storage solutions engineered for premium commercial vehicles delivering systematic organization supporting professional operations.
References
Daimler AG. (2024). Mercedes-Benz Sprinter technical specifications. Mercedes-Benz Commercial Vehicles UK.
Fleet News. (2024). Large van segment comparison and analysis. Fleet News Industry Reports.
Society of Motor Manufacturers and Traders. (2024). Commercial vehicle market segment data. SMMT Industry Publications.
Vehicle Certification Agency. (2024). Commercial vehicle specifications and compliance standards. VCA Technical Guidelines.
What Van? (2024). Mercedes Sprinter review and dimensions guide. Commercial Vehicle Publications.
