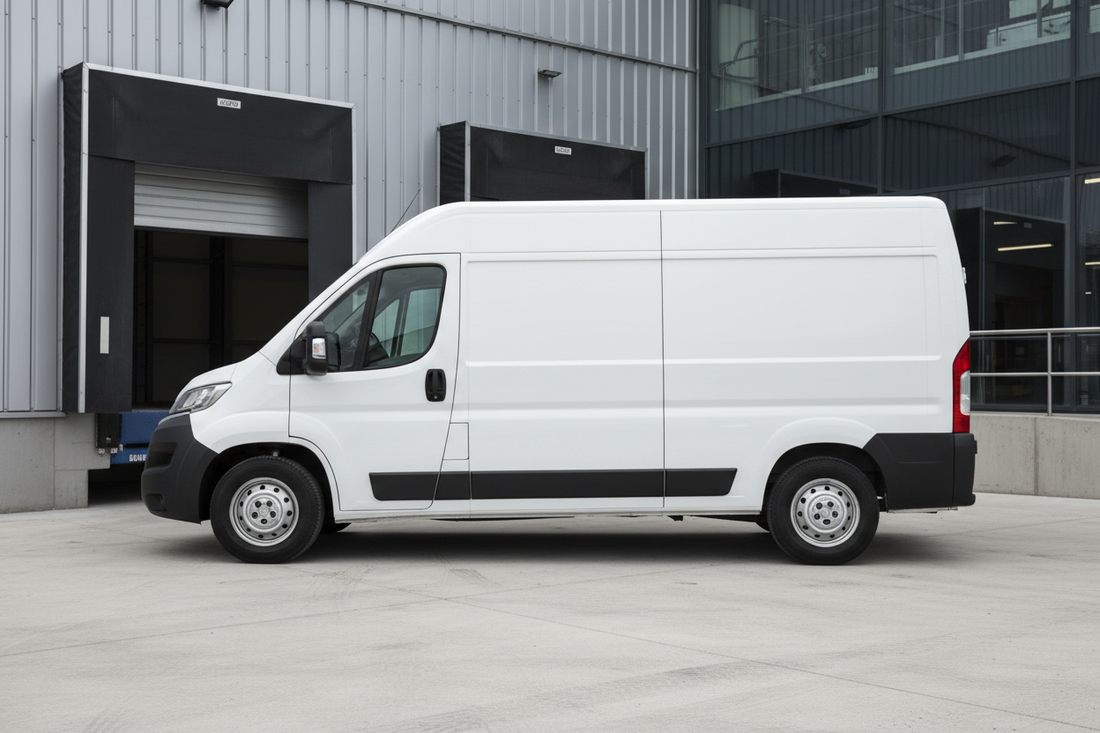

Understanding Citroen Relay L3H2 dimensions proves essential for tradespeople evaluating this capable long wheelbase, medium roof configuration balancing substantial cargo capacity against practical urban navigation. The L3H2 variant combines 4,035mm wheelbase with 1,932mm internal height creating impressive 13 cubic meters load space whilst maintaining reasonable maneuverability for varied operational environments. This guide examines precise measurements, payload specifications, and strategic storage planning maximizing this versatile configuration's commercial potential for diverse trade applications requiring organized substantial capacity without maximum-height complications.
Key Specifications Overview
|
Specification |
Citroen Relay L3H2 |
|
Overall Length |
6,000mm |
|
Overall Width |
2,050mm (2,524mm with mirrors) |
|
Overall Height |
2,254mm |
|
Wheelbase |
4,035mm |
|
Load Length |
3,705mm |
|
Internal Width |
1,870mm max |
|
Width Between Arches |
1,422mm |
|
Internal Height |
1,932mm |
|
Cargo Volume |
13m³ |
|
Payload |
1,200-1,550kg |
|
Turning Circle |
~15m |
|
Load Floor Height |
558mm |
|
Rear Door Aperture |
1,422mm W × 1,762mm H |
Internal Cargo Dimensions
Load Space Measurements
Internal load length reaches impressive 3,705mm, accommodating materials up to approximately 3.6 meters without requiring roof rack solutions compromising fuel efficiency or creating security concerns. This substantial length proves invaluable for plumbers transporting extended pipe runs, builders carrying timber lengths, or operations moving furniture and appliances requiring unobstructed floor space.
Maximum floor width reaches 1,870mm, amongst the widest in its class, whilst width between wheel arches measures 1,422mm accommodating standard euro pallets sideways or enabling dual-row shelving installations maximizing storage density. The 1,932mm internal height enables standing workspace for individuals up to approximately 6ft 2in, transforming operational efficiency for trades requiring interior equipment access. The citroen berlingo full side van racking kit extra depth nr4 demonstrates storage concepts for Citroen platforms, though Relay-specific solutions optimize larger dimensions more effectively.
Roof Height Advantages
The H2 medium roof configuration strikes optimal balance between cargo volume and practical accessibility. Unlike H1 standard roof variants limiting headroom, H2 enables standing workspace whilst avoiding H3 super-high complications with multi-story car parks and low-clearance restrictions. This 2,254mm external height maintains access to most facilities whilst 1,932mm internal height accommodates multi-level shelving creating substantial organized capacity. For comprehensive organization, explore our citroen collection featuring vehicle-specific solutions.
Platform Sharing Benefits
Multi-Brand Compatibility
The Citroen Relay shares fundamental architecture with Peugeot Boxer and Fiat Ducato creating significant storage solution compatibility across partner brands. This interchangeability benefits fleet operators maintaining mixed brands—storage systems standardize across different manufacturer vehicles simplifying driver transitions and operational procedures protecting storage investments during vehicle transitions.
Identical internal dimensions enable cross-compatible storage systems supporting fleet standardization. Operations maintaining mixed Citroen-Peugeot-Fiat fleets benefit from unified storage infrastructure reducing inventory complexity and training requirements whilst protecting capital investments throughout vehicle replacement cycles.
Loading Access Features
Rear Door Configuration
Twin rear doors open to 180 degrees (270-degree option available) providing excellent access for equipment loading and material handling. Door aperture measures approximately 1,422mm width by 1,762mm height, matching internal dimensions enabling upright loading of tall equipment, assembled components, or bulky materials without requiring disassembly operations wasting valuable job site time.
The generous aperture combined with accessible 558mm load floor height creates efficient loading workflows. Operators regularly handling appliances, furniture, or construction materials appreciate straightforward access reducing physical strain and minimizing loading time supporting operational productivity throughout demanding daily schedules. The citroen berlingo single side swb lwb slim racking kit nr2 demonstrates space-efficient designs.
Side Loading Options
Optional sliding side doors facilitate roadside loading valuable in congested urban environments or when parking restrictions prevent rear access. Side door dimensions provide adequate width for equipment passage whilst maintaining structural integrity. Strategic storage planning ensures side door access remains unobstructed maintaining operational convenience for frequently accessed tools or equipment. The citroen berlingo bulkhead van racking nr 1 fits l1 l2 shows bulkhead integration strategies. Visit Van Shelves for comprehensive guidance.
Payload and Weight Specifications
Gross Vehicle Weight Ratings
L3H2 Relay variants operate at multiple GVW ratings typically ranging 3,500kg to 4,000kg. Standard 3.5-tonne models require only standard driving licenses whilst delivering 1,200-1,400kg payload adequate for most trade applications. Higher GVW variants necessitate Category C1 licensing but deliver 1,400-1,550kg payload supporting demanding commercial requirements approaching maximum legal limits.
Calculate total operational weight including storage installation materials (typically 200-300kg for comprehensive L3H2 systems), tool inventories, anticipated cargo loads, and occupant weights ensuring compliance with ratings. Exceeding limits compromises safety, accelerates component wear, violates regulations risking substantial penalties, and potentially invalidates insurance coverage.
Payload Optimization
Lightweight storage systems maximize usable payload for operational cargo rather than structural infrastructure. Aluminum frameworks combined with quality plywood balance durability against weight efficiency. Position heaviest items low and centered between axles maintaining balanced distribution optimizing handling characteristics, minimizing tire wear, and maximizing fuel efficiency throughout operational lifecycle.
Strategic component selection eliminates unnecessary features consuming payload without delivering proportional operational benefits. Every kilogram saved in storage infrastructure increases usable cargo capacity directly supporting revenue-generating activities. The citroen berlingo full length false floor raised van floor storage platform fits l1 demonstrates weight-conscious approaches.
Storage Solution Planning
Vertical Space Utilization
The 1,932mm internal height enables comprehensive multi-level shelving creating substantial organized capacity. Four or five shelf tiers accommodate varying equipment heights whilst maintaining ergonomic access to frequently used items positioned at mid-levels reducing physical strain during extended daily operations covering multiple job sites.
Position frequently accessed tools at waist-to-shoulder heights minimizing reaching and bending, whilst seasonal equipment or infrequently used items occupy upper shelves maximizing total storage density. Lower shelves accommodate heaviest tools maintaining low center of gravity optimizing vehicle dynamics and safety characteristics essential for loaded operations. The citroen berlingo bulkhead false floor van side door storage nr b2 demonstrates strategic storage utilization.
Modular System Benefits
Quality modular storage enables progressive expansion matching business development without requiring complete system replacement. Start with fundamental configurations addressing immediate requirements, adding supplementary components systematically as operational capacity develops managing capital expenditure effectively whilst ensuring storage infrastructure remains relevant throughout business lifecycle.
Standardized mounting compatibility protects initial investments enabling cost-effective customization addressing evolving requirements. This flexibility proves particularly valuable for growing operations or businesses developing new service capabilities requiring different organizational approaches without substantial reinvestment. The citroen berlingo bulkhead false floor with side door drawer nr b3 demonstrates modular approaches.
Trade-Specific Applications
Building and Construction
General builders appreciate L3H2 configurations accommodating substantial material stocks including plasterboard sheets, timber lengths, and bulky insulation whilst maintaining comprehensive tool organization. The 3,705mm load length handles typical building trade materials without requiring roof racks, whilst 13 cubic meters cargo volume rivals small rigid trucks whilst maintaining van licensing advantages.
Standing workspace capability enables interior workbench installations creating mobile workshops for equipment maintenance, component fabrication, or preparation work performed on-site without requiring access to fixed facilities. This capability proves particularly valuable for remote projects or operations covering wide geographic territories requiring self-sufficiency. The citroen berlingo swb fully loaded dual side racking kit nr 7 demonstrates comprehensive approaches.
Electrical Contractors
Large electrical operations benefit from extensive cargo capacity accommodating comprehensive cable reel inventories, testing equipment collections, and substantial fixing assortments. Multi-level shelving systems organize varied cable sizes, fixing types, and terminal specifications maintaining categorical separation enabling rapid location without detailed searching directly improving job site efficiency.
Drawer systems integrated within storage frameworks organize small parts inventories preventing time-wasting searches whilst protecting sensitive components from damage during transit. The systematic approach transforms reactive problem-solving into proactive preparation improving customer service through reliable completion capabilities. The citroen berlingo swb lwb false floor kit dual heavy duty drawers fl3 demonstrates drawer integration.
Plumbing Operations
Plumbers transporting diverse pipe lengths, extensive fitting collections, and power equipment find L3H2 particularly suitable. Extended load length accommodates substantial material stocks reducing restocking frequency whilst maintaining organized inventory management. Euro container systems prove particularly effective organizing brass fittings, compression joints, and specialized components by type and size.
The 13 cubic meters cargo volume supports comprehensive tool collections plus project materials enabling single-trip operations reducing fuel costs and improving productivity. Standing workspace facilitates interior equipment access maintaining organized systematic storage supporting efficient operations. The sealant tube holder mastic caulk silicone for van racking enhances systematic organization.
Furniture Delivery Operations
Removals and furniture delivery businesses appreciate L3H2 dimensions accommodating substantial loads including domestic relocations or commercial furniture installations. The 1,932mm internal height enables upright furniture transportation preventing assembly/disassembly requirements saving considerable time per delivery whilst reducing damage risks from repeated handling.
Careful interior protection proves essential—padded wall panels, quilted blankets, and strategic cargo restraints prevent transit damage whilst protecting vehicle interiors. Purpose-designed load restraint systems maintain cargo security during transport whilst enabling rapid reconfiguration between diverse load types. The 12x aerosol spray can bottle holder prevents rolling during transit.
Maneuverability Considerations
Urban Navigation
Despite substantial 6,000mm overall length, experienced operators successfully navigate L3H2 variants through residential areas, construction sites, and urban delivery routes with appropriate spatial awareness. The approximate 15-meter turning circle requires greater planning versus smaller vans though remains adequate for most commercial situations with proper route assessment.
Width awareness proves crucial on narrow streets or tight loading areas—the 2,524mm width including mirrors requires careful positioning avoiding parked vehicles, street furniture, or pedestrians. The 2,254mm height enables most facility access though low-clearance restrictions require awareness preventing costly damage.
Parking Requirements
Extended 6,000mm length requires commercial vehicle parking spaces or extended bays. Standard car park spaces prove inadequate necessitating commercial facilities or multiple standard bays when visiting client premises. Overnight storage considerations include secure compounds offering adequate maneuvering room and weather protection maintaining vehicle condition whilst deterring theft attempts.
Reversing cameras and parking sensors significantly aid maneuvering particularly when backing into tight loading bays or navigating congested sites common in urban commercial environments. These aids prove essential given substantial dimensions requiring greater spatial awareness versus smaller commercial vehicles. The citroen berlingo full length false floor triple drawer storage racking set nr 8 maintains organized inventory management.
Comparison with Alternative Configurations
Versus L2H2 Relay
L3H2 adds approximately 650mm load length versus L2H2 creating 13 cubic meters versus 10 cubic meters, substantial capacity increase justifying modest turning circle compromise. Operations regularly transporting extended materials or requiring comprehensive mobile workshop capability benefit from L3H2 configuration. However, businesses prioritizing ultimate maneuverability in challenging urban environments may prefer L2H2's more compact footprint.
Versus L4H3 Maximum Relay
L4H3 extends load length to 4,070mm creating 17 cubic meters but requires complex turning maneuvers and faces more facility restrictions. L3H2 provides optimal balance for businesses requiring substantial capacity without maximum-size complications. Most trade applications find L3H2 adequate whilst maintaining practical maneuverability and facility access supporting varied operational environments. The citroen berlingo l1 l2 single racking max capacity kit nr 5 demonstrates maximum capacity approaches.
Running Cost Considerations
Fuel Efficiency
L3H2 Relay typically achieves 28-35 mpg depending on engine specification, driving conditions, and load weights. Modern efficient powertrains deliver reasonable economy for vehicle size. Operations covering high annual mileage should calculate fuel costs carefully ensuring economic viability across typical operational patterns supporting sustainable business operations.
Regular maintenance including proper tire inflation, clean air filters, and quality engine oil maintains optimal efficiency throughout operational lifecycle. Smooth driving techniques including gradual acceleration, anticipatory braking, and appropriate gear selection generate meaningful fuel savings across annual mileage.
Total Cost of Ownership
Competitive Citroen pricing combined with strong dealer networks and reasonable maintenance costs creates favorable ownership economics. Calculate total ownership costs including depreciation, fuel, maintenance, and insurance determining true economic proposition across typical fleet lifecycle periods. Relay's market position delivers practical value balancing initial investment against operational costs and capability.
Conclusion
Citroen Relay L3H2 dimensions offer practical balance between substantial cargo capacity and reasonable urban maneuverability addressing diverse commercial requirements. The 4,035mm wheelbase creates impressive 13 cubic meters load space with 3,705mm load length, whilst 1,932mm internal height enables standing workspace transforming operational efficiency. The configuration suits operations requiring organized substantial capacity without maximum-height complications, delivering reliable professional service across demanding trade applications from building contractors to comprehensive mobile workshops.
