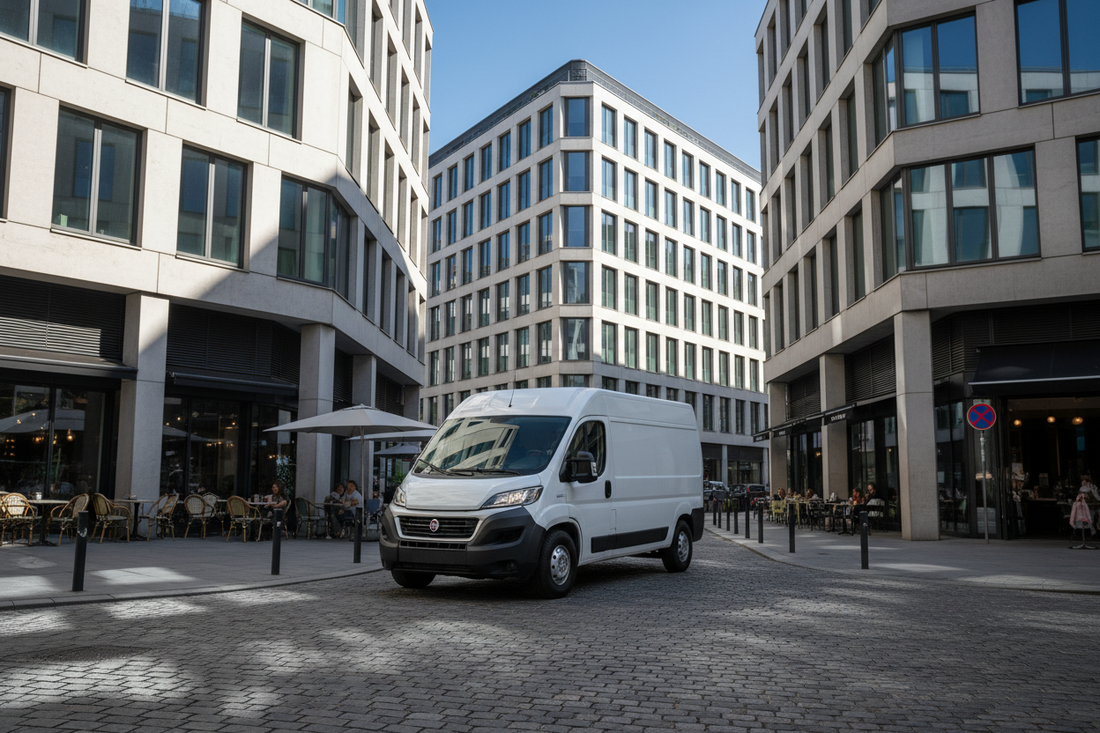

Fiat Ducato SWB Dimensions: Complete Specifications Guide

Understanding Fiat Ducato SWB dimensions proves essential for tradespeople evaluating this popular short wheelbase configuration balancing practical cargo capacity against exceptional urban maneuverability. The SWB variant combines 3,000mm wheelbase with multiple roof height options creating 8-11 cubic meters load space whilst maintaining tight 12.5-meter turning circle ideal for congested city operations. This guide examines precise measurements, payload specifications, and strategic storage planning maximizing this versatile configuration's commercial potential for urban trades requiring organized adequate capacity without excessive vehicle dimensions complicating daily operations.

Key Specifications Overview

Specification	L1H1 Standard	L1H2 Medium	L1H3 High
Overall Length	4,963mm	4,963mm	4,963mm
Overall Width	2,050mm (2,524mm mirrors)	2,050mm (2,524mm mirrors)	2,050mm (2,524mm mirrors)
Overall Height	1,932mm	2,254mm	2,524mm
Wheelbase	3,000mm	3,000mm	3,000mm
Load Length	2,670mm	2,670mm	2,670mm
Internal Width	1,870mm max	1,870mm max	1,870mm max
Width Between Arches	1,422mm	1,422mm	1,422mm
Internal Height	1,662mm	1,932mm	2,172mm
Cargo Volume	8m³	10m³	11m³
Payload	1,100-1,450kg	1,050-1,400kg	1,000-1,350kg
Turning Circle	~12.5m	~12.5m	~12.5m

Internal Cargo Dimensions

Load Space Measurements

Internal load length measures 2,670mm across all SWB roof heights, accommodating materials up to approximately 2.5 meters without requiring roof rack solutions compromising fuel efficiency. This length suits typical urban trade requirements including standard plumbing pipes, electrical conduit, and building materials commonly used in residential projects whilst maintaining compact external footprint ideal for congested environments.

Maximum floor width reaches 1,870mm, amongst the widest in its class, whilst width between wheel arches measures 1,422mm accommodating standard euro pallets sideways or enabling effective single-side shelving installations. The fiat doblo full side van racking kit extra depth nr4 demonstrates comprehensive storage concepts for Fiat platforms. For comprehensive organization, explore our fiat collection.

Roof Height Options

Standard roof (H1) at 1,662mm internal height enables multi-story car park access whilst providing adequate space for two or three shelf tiers. Medium roof (H2) achieves 1,932mm enabling standing workspace for most individuals transforming operational efficiency. High roof (H3) reaches 2,172mm creating generous vertical storage for comprehensive multi-level shelving systems maximizing organizational capacity within compact footprint. The fiat doblo single side swb lwb slim racking kit nr2 demonstrates space-efficient designs.

CNC WORK

Loading Access Features

Rear Door Configuration

Twin rear doors open to 180 degrees (270-degree option available) providing excellent access. Door aperture measures approximately 1,422mm width by varying heights matching internal roof configurations—1,383mm (H1), 1,762mm (H2), or 1,992mm (H3). These generous openings enable upright loading of assembled equipment or bulky materials without requiring disassembly operations.

Load floor sits approximately 558mm from ground level, enabling comfortable loading without excessive lifting. This accessible height proves advantageous for operations regularly handling heavy items or bulk materials requiring frequent loading cycles supporting operational productivity. The fiat doblo bulkhead van racking nr 1 fits l1 l2 demonstrates bulkhead-compatible storage design.

Side Loading Options

Optional sliding side doors facilitate roadside loading valuable when parking restrictions prevent rear access. Side door dimensions provide adequate width for equipment passage whilst maintaining structural integrity. Strategic storage planning ensures side door accessibility remains unobstructed. The fiat doblo bulkhead false floor van side door storage nr b2 shows side access optimization. Visit Van Shelves for comprehensive guidance.

Payload and Weight Specifications

Gross Vehicle Weight Ratings

SWB Ducato variants operate at 3,000kg, 3,300kg, or 3,500kg gross vehicle weight. Standard 3.5-tonne models require only standard driving licenses whilst delivering 1,000-1,450kg payload depending on roof height and optional equipment. Higher roof variants consume additional structural weight reducing available payload compared to lower configurations.

Calculate total operational weight including storage installation materials (typically 100-200kg for SWB systems), tool inventories, anticipated cargo loads, and occupant weights ensuring compliance. Exceeding limits compromises safety and violates regulations. The fiat doblo false floor racking set raised floor van storage system demonstrates weight-conscious approaches.

Payload Optimization

Lightweight storage systems maximize usable payload. Aluminum frameworks or slim plywood configurations balance durability against weight efficiency. Position heaviest items low and centered maintaining balanced distribution optimizing handling characteristics and fuel efficiency. The fiat doblo full length false floor raised van floor storage platform fits l1 shows lightweight raised floor concepts.

Storage Solution Planning

Vertical Space Utilization

High roof variants enable comprehensive multi-level shelving creating substantial organized capacity within compact footprint. Three or four shelf tiers accommodate varying equipment heights whilst maintaining ergonomic access to frequently used items. Position frequently accessed tools at waist-to-shoulder heights minimizing physical strain, whilst seasonal equipment occupies upper shelves maximizing storage density.

Lower shelves accommodate heaviest tools maintaining low center of gravity optimizing vehicle dynamics essential for urban operations. The fiat doblo bulkhead false floor with side door drawer nr b3 demonstrates drawer integration within compact dimensions.

Modular System Benefits

Quality modular storage enables progressive expansion matching business development. Start with fundamental configurations, adding components systematically as capacity develops managing expenditure effectively. Standardized mounting compatibility protects initial investments enabling cost-effective customization. The fiat doblo swb lwb false floor kit dual heavy duty drawers fl3 demonstrates modular approaches.

Trade-Specific Applications

Electrical Contractors

SWB configurations suit urban electrical operations navigating residential areas and tight construction sites. Medium or high roof variants provide optimal balance between maneuverability and cargo volume for comprehensive tool collections, cable inventories, and testing equipment. Multi-level shelving organizes varied cable sizes and fixing types maintaining categorical separation. The fiat doblo swb fully loaded dual side racking kit nr 7 demonstrates comprehensive approaches.

Plumbing Operations

Plumbers benefit from 2,670mm load length accommodating standard pipe sections whilst SWB maintains exceptional urban accessibility. The 1,422mm width between arches suits typical plumbing materials. Euro container systems organize fittings and components effectively. Adequate payload supports comprehensive tool inventories plus project materials. The full false floor set for fiat doblo triple drawer storage fl4 demonstrates systematic organization.

Building Trades

General builders appreciate SWB balancing cargo capacity against urban maneuverability. H2/H3 variants accommodate diverse tool collections plus moderate material stocks whilst maintaining compact footprint versus larger vans. Standing workspace in higher roof variants enables interior equipment access. The fiat doblo full length false floor triple drawer storage racking set nr 8 demonstrates comprehensive storage.

Urban Delivery Services

Courier and light delivery operations benefit from exceptional 12.5-meter turning circle enabling efficient route completion through congested city centers. Adequate cargo volume accommodates typical parcel loads whilst compact dimensions facilitate rapid parking and frequent stops. The fiat doblo swb full length false floor triple drawer with max slim racking set no 9 demonstrates delivery-optimized solutions.

CNC WORK

Maneuverability and Urban Suitability

City Navigation Advantages

The exceptional 12.5-meter turning circle enables confident navigation through narrow residential streets, tight construction site access, and congested urban environments where larger vans struggle. Compact 4,963mm overall length facilitates U-turns in standard street widths without requiring three-point maneuvers saving valuable time during urban operations.

Height clearance varies by roof configuration—H1 enables universal multi-story access, H2 clears most facilities, whilst H3 requires awareness of low clearance restrictions. Width awareness proves important on narrow streets—the 2,524mm width including mirrors requires careful positioning. For more insights, read our comprehensive Ducato size guide.

Parking Convenience

Compact 4,963mm length fits comfortably within standard or extended parking spaces avoiding oversized commercial vehicle restrictions many facilities impose. The SWB configuration enables parking in locations impossible for MWB or LWB variants, crucial advantage for urban tradespeople regularly accessing client premises with limited parking availability. The fiat doblo l1 l2 single racking max capacity kit nr 5 demonstrates maximum capacity within compact dimensions.

Comparison with Alternative Configurations

Versus MWB Ducato (L2)

MWB adds approximately 450mm load length creating 10-13 cubic meters versus SWB's 8-11 cubic meters. However, turning circle increases to approximately 13.5 meters and overall length reaches 5,413mm complicating urban operations. SWB provides optimal balance for businesses prioritizing ultimate maneuverability whilst accepting modest capacity reduction suitable for city-based trades.

Versus LWB Ducato (L3)

LWB extends substantially creating 13+ cubic meters but requires 15-meter turning circle and exceeds 6 meters length significantly complicating parking and navigation. SWB suits operations where urban accessibility proves paramount whilst cargo requirements remain moderate. Most city-based trades find SWB adequate whilst benefiting from superior maneuverability.

Running Cost Considerations

Fuel Efficiency

SWB Ducato typically achieves 32-38 mpg depending on engine specification, driving conditions, and load weights. Lighter weight versus longer variants contributes to improved economy. Regular maintenance including proper tire inflation and clean filters maintains optimal efficiency. Smooth driving techniques generate meaningful fuel savings across annual mileage.

Total Cost of Ownership

Competitive Fiat pricing combined with strong dealer networks creates favorable ownership economics. SWB variants typically cost £1,000-2,000 less than equivalent MWB configurations whilst delivering superior fuel economy offsetting initial savings. Calculate total ownership costs including depreciation, fuel, maintenance, and insurance determining true economic proposition.

Conclusion

Fiat Ducato SWB dimensions offer optimal balance between practical cargo capacity and exceptional urban maneuverability addressing city-based trade requirements. The 3,000mm wheelbase creates 8-11 cubic meters load space depending on roof height, whilst remarkable 12.5-meter turning circle and compact 4,963mm length enable confident navigation through challenging urban environments. Strategic storage planning maximizing vertical space ensures these versatile short wheelbase configurations deliver reliable professional service across demanding city operations prioritizing parking convenience and tight-space accessibility.
