The Fiat Ducato electric van dimensions mirror their diesel counterparts whilst accommodating battery systems that slightly impact payload capacity and cargo configurations. Understanding precise measurements proves essential for tradespeople planning storage installations, material transportation, or fleet electrification strategies. This comprehensive guide examines e-Ducato specifications across available wheelbase variants, cargo volumes, and practical considerations for maximizing this popular electric commercial vehicle's substantial load capacity whilst maintaining operational efficiency.
External Dimensions Overview
Available Body Configurations
The Fiat e-Ducato offers multiple wheelbase and roof height combinations addressing diverse commercial requirements. Standard wheelbase (SWB) measures 3,000mm, medium wheelbase (MWB) extends to 3,450mm, whilst long wheelbase (LWB) variants reach 4,035mm. These options create substantial flexibility for operations requiring specific cargo length capabilities balanced against maneuverability requirements in urban environments.
Roof height options include standard (H1) at 1,932mm, medium (H2) reaching 2,254mm, and high roof (H3) achieving 2,524mm total vehicle height. Combined wheelbase and height variations produce nine distinct body configurations spanning diverse operational requirements from compact urban delivery to extensive mobile workshop applications.
|
Configuration |
Length |
Width |
Height |
Wheelbase |
|
L1H1 (SWB Standard) |
4,963mm |
2,050mm |
1,932mm |
3,000mm |
|
L2H2 (MWB Medium) |
5,413mm |
2,050mm |
2,254mm |
3,450mm |
|
L3H2 (LWB Medium) |
6,000mm |
2,050mm |
2,254mm |
4,035mm |
|
L4H3 (XLWB High) |
6,363mm |
2,050mm |
2,524mm |
4,035mm |
Turning Circle and Maneuverability
Despite generous dimensions, the e-Ducato maintains reasonable turning circles facilitating urban navigation. SWB variants achieve approximately 12.5m turning circles, whilst LWB models require roughly 15m. These specifications prove adequate for typical commercial operations including residential deliveries, construction site access, and urban service routes.
Width including mirrors reaches 2,525mm requiring awareness when navigating narrow streets or tight loading bays. Overall width excluding mirrors measures 2,050mm, the legal maximum for standard commercial vehicles in UK markets. Height awareness proves crucial preventing damage when entering multi-story car parks or low-clearance facilities.
Internal Cargo Dimensions
Load Length Specifications
Internal cargo length varies significantly across wheelbase options directly affecting material transportation capabilities. L1 (SWB) provides 2,670mm load length, L2 (MWB) extends to 3,120mm, whilst L3 (LWB) offers 3,705mm accommodating longer materials without requiring roof rack solutions compromising aerodynamics and range efficiency.
L4 configurations (extra-long wheelbase) maximize cargo length reaching 4,070mm, ideal for operations regularly transporting extended materials including plumbing pipes, timber lengths, or scaffolding components. The ford transit custom swb van racking with full driver side storage demonstrates similar storage approaches adaptable to e-Ducato platforms.
Width and Height Measurements
Internal cargo width between wheel arches measures 1,422mm across all variants, whilst maximum width at floor level reaches 1,870mm. This generous width accommodates euro pallets sideways or enables dual-row shelving installations maximizing storage density. The mercedes vito van racking shelves driver or passenger side shows organizational concepts applicable to e-Ducato's spacious interior.
Internal height varies with roof configurations—H1 standard roof provides 1,662mm, H2 medium roof extends to 1,932mm, whilst H3 high roof achieves 2,172mm headroom. Taller configurations enable multi-level shelving installations or upright transportation of tall equipment without requiring disassembly. The vw transporter t5 t6 van racking shelves demonstrates vertical storage optimization principles.
Cargo Volume and Capacity
Volumetric Specifications
Total cargo volumes range dramatically across body configurations reflecting wheelbase and roof height combinations. Entry-level L1H1 variants offer approximately 8 cubic meters, mid-range L2H2 configurations provide roughly 10 cubic meters, whilst maximum L4H3 specifications achieve exceptional 17 cubic meters cargo volume rivaling small rigid trucks.
These substantial volumes accommodate comprehensive tool collections, extensive material stocks, or bulk delivery inventories. The modular cargo space enables flexible configurations balancing shelving installations against floor space for larger items or equipment requiring full-height clearance.
|
Configuration |
Cargo Volume |
Load Length |
Internal Height |
|
L1H1 |
8m³ |
2,670mm |
1,662mm |
|
L2H2 |
10m³ |
3,120mm |
1,932mm |
|
L3H2 |
13m³ |
3,705mm |
1,932mm |
|
L4H3 |
17m³ |
4,070mm |
2,172mm |
Payload Capacity Considerations
Electric powertrains impact payload capabilities versus diesel equivalents—battery systems typically consume 300-400kg of available capacity. Standard e-Ducato configurations offer approximately 1,100-1,300kg payload depending on specific body variant and battery pack selection. Whilst reduced versus diesel alternatives approaching 1,600kg, this capacity proves adequate for most trade applications balancing tool inventory against material loads.
Careful storage system selection proves crucial maximizing usable payload. The ford custom 2023 van raised floor demonstrates lightweight storage approaches preserving maximum payload for cargo rather than structural components. Quality shelving systems typically consume 150-250kg leaving substantial capacity for operational requirements.
Battery and Range Implications
Battery Pack Configurations
The e-Ducato offers two battery options—standard 47kWh pack suitable for urban operations averaging 100-120 miles range, or extended 79kWh configuration providing 160-190 miles between charges. Battery placement beneath cargo floors maintains full cargo volume whilst lowering center of gravity improving handling characteristics versus diesel equivalents.
This underfloor positioning means traditional raised floor storage solutions prove incompatible—batteries occupy space typically utilized for concealed storage compartments. Operations planning comprehensive storage must focus on wall-mounted racking maximizing vertical space rather than underfloor approaches. The ford custom swb racking storage demonstrates effective wall-utilization strategies.
Range Impact from Loading
Payload weight directly affects electric vehicle range—every 100kg additional load reduces range approximately 3-5% through increased energy consumption. Comprehensive storage installations plus full tool inventories potentially decrease maximum range by 10-15% versus unloaded specifications. Calculate typical operational loads ensuring selected battery configuration provides adequate range including realistic payload scenarios.
Regenerative braking partially offsets load impacts through energy recovery during deceleration, particularly beneficial for urban stop-start driving patterns. However, highway operations or rural routes with minimal braking opportunities see limited regenerative benefits making initial battery selection critical for operational viability.
Storage Solution Planning
Wall-Mounted Racking Systems
Maximizing vertical storage proves essential given incompatible underfloor options. Full-height shelving systems utilize generous internal heights creating substantial organized capacity. The ford custom 2023 toolbox racking storage demonstrates comprehensive wall organization adaptable to e-Ducato's dimensions with appropriate measurements.
Three or four shelf levels accommodate varying equipment heights whilst maintaining ergonomic access to frequently used items. Position heaviest tools and materials on lower shelves maintaining low center of gravity optimizing handling and range efficiency. Upper shelves store lightweight consumables or infrequently accessed equipment maximizing total storage density.
Modular System Benefits
Selecting adjustable modular configurations enables progressive expansion as business requirements evolve. The renault trafic van racking driver side shows modular principles applicable across commercial vehicles. Start with fundamental single-side installations addressing immediate needs, adding supplementary components systematically as operational capacity develops.
Quality modular systems maintain component compatibility protecting initial investments whilst supporting business growth. This phased approach manages capital expenditure effectively whilst ensuring storage infrastructure develops proportionally with operational requirements without necessitating complete replacement.
Specialized Accessories
Integrate dedicated holders for trade-specific requirements maximizing organizational efficiency. The sealant tube holder mastic caulk silicone for van racking workshop garage shed maintains cylindrical products organized preventing rolling during transit. The 12x aerosol spray can bottle holder secures spray products upright preventing valve clogging.
Small accessory additions dramatically improve daily operational efficiency through systematic organization. The disposable glove box organizer and holder for big wipes address hygiene requirements whilst maintaining professional vehicle presentations impressing clients and supporting premium service positioning.
Loading Access Points
Rear Door Configurations

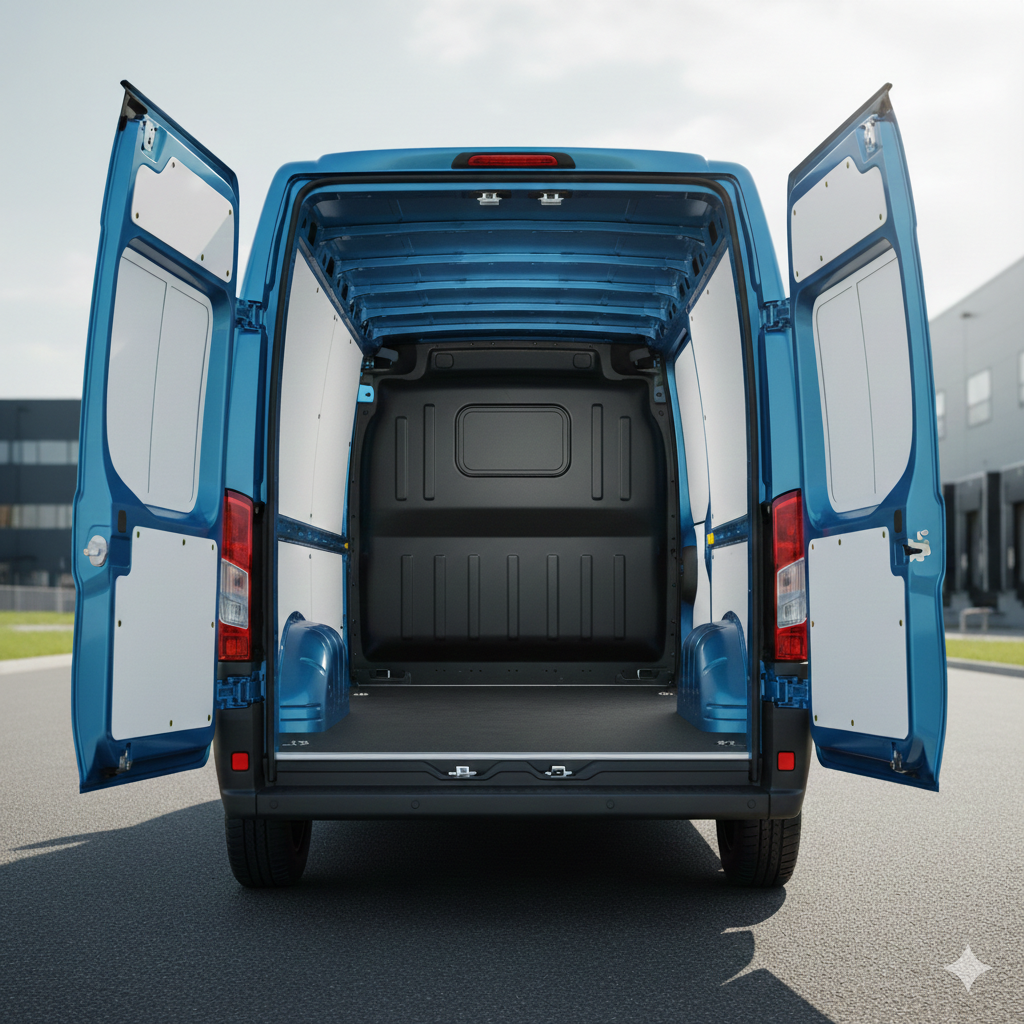

Standard twin rear doors open to 180 degrees providing excellent access for loading bulky items or equipment. Door aperture dimensions measure approximately 1,422mm width by 1,662mm height (H1) to 2,172mm (H3) matching internal cargo dimensions. This generous opening accommodates euro pallets, large toolboxes, or assembled equipment without requiring disassembly.
Some configurations offer optional rear barn doors versus panel van rear ends—these reduce internal cargo length slightly but provide enhanced security and weather protection. Consider operational requirements balancing access convenience against security and climate control when specifying body configurations.
Side Loading Doors
Available sliding side doors facilitate roadside loading without requiring rear access space valuable in congested urban environments or tight parking situations. Standard passenger-side sliding doors measure approximately 1,010mm width by 1,327mm height (varying with roof configurations) enabling comfortable human access and reasonable equipment passage.
Dual sliding door options add driver-side access proving beneficial for operations requiring frequent both-side loading or when serving multiple delivery points along single streets. However, dual doors reduce available wall space for shelving installations requiring careful storage planning balancing access against organizational capacity.
Weight Distribution Guidelines
Optimal Loading Practices
Position heaviest items low and centered between axles maintaining balanced weight distribution. This placement optimizes handling characteristics whilst maximizing range efficiency through reduced energy consumption from optimal suspension geometry. The peugeot expert van racking driver side demonstrates proper weight distribution principles through strategic shelf positioning.
Avoid concentrated loads creating unbalanced weight distribution affecting handling and potentially causing premature suspension wear. Distribute tools and materials evenly across available storage ensuring no single shelf or cargo area bears disproportionate loading creating stability concerns.
Payload Monitoring
Electric vehicles benefit from weight monitoring ensuring payload remains within rated capacities whilst optimizing range predictions. Some e-Ducato variants include onboard payload monitoring displaying current load weights assisting operators in maintaining legal compliance and maximizing efficiency.
Calculate comprehensive system weight including storage installation materials, typical tool inventory, and anticipated material loads. Maintain detailed load records ensuring operations consistently comply with vehicle ratings whilst maximizing productive payload utilization balancing business requirements against legal limits.
Comparison with Diesel Variants
Dimensional Parity
External and internal dimensions remain identical between electric and diesel Ducato variants ensuring storage solutions, loading equipment, and operational procedures transfer seamlessly during fleet electrification. This compatibility protects existing infrastructure investments whilst enabling progressive transition to electric powertrains matching operational requirements and charging infrastructure development.
However, payload differences require consideration—diesel variants typically offer 200-400kg additional capacity versus equivalent electric configurations. Operations consistently maximizing payload may require larger electric variants compensating for battery weight impacts, whilst lighter-loaded operations transition easily to equivalent-sized electric alternatives.
Storage Solution Compatibility
Wall-mounted racking systems designed for diesel Ducatos transfer directly to electric variants without modification. However, avoid diesel-specific underfloor storage solutions incompatible with battery placement. The mercedes vito van rack tool box storage shows vertical storage optimization applicable across powertrain types.
Focus storage planning on vertical space utilization, rear-mounted configurations, and bulkhead-integrated solutions maximizing capacity without requiring underfloor access. This approach maintains storage density whilst accommodating electric powertrain packaging requirements.
Practical Applications by Trade
Electrical Contractors
Electricians benefit from e-Ducato's substantial cargo volumes accommodating extensive cable reels, testing equipment, and comprehensive tool collections. The ford custom 2023 end van racking set toolboxes drill shelves storage demonstrates organizational approaches adaptable to e-Ducato's spacious interior enabling systematic categorization improving job site efficiency.
Medium wheelbase H2 configurations provide optimal balance between cargo capacity and urban maneuverability for typical electrical operations. Battery range proves adequate for urban service routes averaging 40-60 daily miles with charging during overnight periods maintaining operational readiness.
Plumbing Operations
Plumbers transporting diverse pipe lengths, extensive fitting inventories, and power equipment benefit from long wheelbase configurations. L3H2 or L4H3 variants accommodate substantial material stocks reducing restocking frequency whilst maintaining comprehensive tool organization. The ford custom lwb 2023 van racking shelves storage for tools boxes set 11 shows comprehensive storage concepts.
Consider battery range carefully for plumbing operations potentially covering wider geographic areas versus concentrated urban electrical routes. Extended battery configurations prove valuable ensuring adequate daily range including emergency callout responses or unexpected job extensions.
Building and Construction
General builders appreciate maximum cargo volumes transporting diverse tools, materials, and equipment. L4H3 configurations rival small rigid trucks whilst maintaining van maneuverability and licensing advantages. The vauxhall vivaro van racking driver side demonstrates systematic organization principles applicable to e-Ducato platforms.
However, construction operations frequently approaching maximum payload capacities may find diesel variants more suitable given higher load ratings. Carefully assess typical payload requirements ensuring electric configurations provide adequate capacity for realistic operational scenarios including worst-case loading conditions.
Future-Proofing Considerations
Charging Infrastructure Planning
Successful e-Ducato operations require reliable charging infrastructure supporting daily operational requirements. Home or depot charging proves most cost-effective utilizing off-peak electricity rates whilst vehicles remain idle overnight. Ensure electrical supply capacity supports vehicle charging requirements—79kWh battery configurations may require upgraded electrical installations for optimal charging speeds.
Public charging networks provide supplementary options for extended routes or emergency situations, though relying primarily on public infrastructure proves more expensive and less convenient than dedicated charging facilities. Plan infrastructure investments considering fleet electrification trajectories ensuring adequate capacity as electric vehicle adoption increases.
Resale Value Projections
Electric commercial vehicles currently command uncertain resale values given rapidly evolving technology and limited secondary market history. However, increasing emissions regulations and expanding clean air zones likely enhance electric vehicle appeal potentially supporting residual values versus diesel equivalents facing operational restrictions.
Quality storage installations enhance resale appeal regardless of powertrain—well-maintained professional racking demonstrates care and increases buyer confidence. The ford custom 2023 van storage system raised floor drawers shelving set 11 shows professional installations adding value to commercial vehicles.
Conclusion
Understanding Fiat Ducato electric van dimensions enables informed decisions regarding storage installations, operational suitability, and fleet electrification strategies. The e-Ducato's substantial cargo volumes, multiple configuration options, and dimensional parity with diesel variants provide excellent foundation for professional mobile operations transitioning to electric powertrains. Careful storage planning maximizing vertical space whilst respecting payload limitations ensures these capable electric commercial vehicles deliver reliable, efficient service across diverse trade applications.
