Vauxhall Vivaro Dimensions: The Complete Guide to Size, Capacity & Payload (2025)
Jun 20
0 comments

Vauxhall Vivaro Dimensions: The Complete Guide to Size, Capacity & Payload (2025)

Key Takeaways

  • Two body lengths available: L1 (4,959mm) and L2 (5,309mm)

  • Load volume: 5.3m³ for L1, 6.1m³ for L2 (up to 6.6m³ with FlexCargo)

  • Maximum payload: Up to 1,384kg - class-leading in the medium van segment

  • Internal load width: 1,628mm (1,258mm between wheel arches)

  • Standard roof height: 1,397mm internal, 1,940mm external

  • Can fit 8×4 sheets and up to 3 Euro pallets

  • Electric version maintains same dimensions as diesel models

For high-quality van shelving solutions designed specifically for your Vivaro, visit our Vivaro collection.

About Vauxhall Vivaro Dimensions

When choosing a commercial van for your business, understanding the exact dimensions is crucial for maximizing efficiency and ensuring you select the right vehicle for your needs. The Vauxhall Vivaro, sitting comfortably in the medium van segment between the smaller Combo and larger Movano, has become one of the UK's best-selling commercial vehicles - and for good reason.CNC WORK

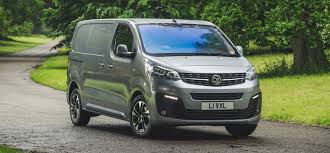

Vauxhall Vivaro

Since its latest generation launched in 2019, the Vivaro has offered a smart balance of external maneuverability and internal cargo space. Built at Vauxhall's Luton facility, this versatile van provides businesses with flexible loading solutions while maintaining practical dimensions for both urban deliveries and long-distance transport.

Complete Vauxhall Vivaro External Dimensions

Overall Vehicle Measurements

The Vauxhall Vivaro comes in two distinct body lengths, each designed to meet different business requirements:

L1 (Short Wheelbase) Model:

  • Overall length: 4,959mm

  • Overall width: 1,920mm (2,204mm including door mirrors)

  • Overall height: 1,940mm

  • Wheelbase: 3,275mm

L2 (Long Wheelbase/XL) Model:

  • Overall length: 5,309mm

  • Overall width: 1,920mm (2,204mm including door mirrors)

  • Overall height: 1,940mm

  • Wheelbase: 3,275mm

The key difference between L1 and L2 models is the 350mm additional rear overhang on the L2, which provides extra cargo capacity without affecting the wheelbase or turning circle.

Ground Clearance and Loading Height

The Vivaro's practical design includes:

  • Loading height: 542-549mm (unladen)

  • Ground clearance suitable for construction sites and rough terrain

  • Low loading height makes daily operations easier for drivers

Interior Cargo Dimensions: Load Space Breakdown

L1 (Short) Model Internal Measurements

The L1 Vivaro provides a compact yet capable load space:

  • Maximum load length (floor): 2,512mm

  • Load length at mid-height: 2,185mm

  • Maximum load width: 1,628mm

  • Width between wheel arches: 1,258mm

  • Internal height: 1,397mm

  • Load volume: 5.3m³

L2 (Long) Model Internal Measurements

The extended L2 variant offers significantly more cargo room:

  • Maximum load length (floor): 2,862mm

  • Load length at mid-height: 2,535mm

  • Maximum load width: 1,628mm

  • Width between wheel arches: 1,258mm

  • Internal height: 1,397mm

  • Load volume: 6.1m³

FlexCargo System: Maximizing Load Length

One of the Vivaro's standout features is the innovative FlexCargo load-through bulkhead system. This clever solution includes:

  • Opening gate measuring 500mm x 300mm (largest in its class)

  • Fold-flat center seat that becomes a mobile desk

  • Ability to carry items up to 3,325mm in L1 models

  • Increases total load volume to 6.6m³ in L2 models

  • Perfect for transporting pipes, ladders, and timber

Payload Capacity: How Much Can a Vivaro Carry?

Weight Specifications by Model

The Vauxhall Vivaro offers impressive payload capabilities across its range:

2.8-tonne GVW Models:

  • Payload capacity: 1,121kg to 1,182kg

  • Available with 1.5L diesel engine (100PS)

3.1-tonne GVW Models:

  • Payload capacity: 1,315kg to 1,384kg

  • Available with 2.0L diesel engines (120PS, 145PS, 180PS)

Axle Weight Limits

Understanding axle weights is crucial for safe loading:

  • Front axle capacity: 1,500kg (all models)

  • Rear axle capacity: 1,800kg (all models)

  • Ensures balanced load distribution

Towing Capacity

The Vivaro also offers respectable towing capabilities:

  • Unbraked towing: 750kg

  • Braked towing: Up to 2,500kg (depending on model)

  • Electric models: 1,000kg braked capacity

Vauxhall Vivaro Electric Dimensions

The Vivaro-e maintains identical external and internal dimensions to its diesel counterparts, ensuring fleet compatibility:

  • Same load volumes: 5.3m³ (L1) and 6.1m³ (L2)

  • Identical loading dimensions

  • No compromise on cargo space despite battery placement

  • Available with 75kWh battery (219-mile WLTP range)

  • Payload varies by battery size but remains over 1,000kg

Door Openings and Access Points

Rear Door Specifications

The Vivaro's rear doors are designed for maximum accessibility:

  • Opening angle: 172° on L1 models

  • Opening angle: Up to 250° on L2 models (without sliding doors)

  • Can be held open for oversized loads (when properly secured)

Side Door Dimensions

Standard dual sliding side doors provide:

  • Easy access from either side of the vehicle

  • Suitable width for Euro pallets

  • Optional hands-free opening (foot-activated)

  • Perfect for tight urban spaces

Practical Loading Scenarios

What Fits in a Vauxhall Vivaro?

The Vivaro's dimensions make it ideal for various cargo types:

Standard Items:

  • 8×4 plywood sheets: Yes (fits flat in both L1 and L2)

  • Euro pallets: Up to 3 pallets

  • King-size mattress: Yes (2m x 1.5m fits comfortably)

  • Ladders and pipes: Up to 4m with FlexCargo system

Lashing Points:

  • 16 internal tie-down points (L1)

  • 18 internal tie-down points (L2)

  • Rated for secure cargo transport

To maximize your Vivaro's cargo organization, explore our professional van shelving solutions.

Van Shelving Installation: Making the Most of Vivaro Dimensions

Key Dimensional Considerations for Shelving

The Vivaro's internal dimensions directly impact shelving system selection and installation:

Internal Height (1,397mm): Allows for multi-tier shelving units with 3-4 shelf levels while maintaining headroom for accessing top shelves. Most professional shelving systems designed for the Vivaro utilize 1,200-1,350mm height to ensure stability.

Width Between Wheel Arches (1,258mm): This critical measurement determines maximum shelving unit width. Standard Vivaro shelving units are typically 1,000-1,200mm wide, leaving access space and accounting for van body flex during driving.

Load Length Differences:

  • L1 models (2,512mm): Accommodate 2-3 shelving modules along one side

  • L2 models (2,862mm): Fit 3-4 modules, ideal for trades requiring extensive tool storage

Installation Best Practices

Floor Mounting Points: The Vivaro's 16 (L1) or 18 (L2) lashing points provide secure anchor locations for shelving systems. Professional installations utilize these factory mounting points to maintain warranty and ensure safety.

Weight Distribution: With payloads up to 1,384kg, proper shelving placement is crucial:

  • Install heavier storage units over or ahead of rear axle

  • Balance left/right loading to prevent vehicle lean

  • Consider shelving weight (typically 50-100kg) in payload calculations

FlexCargo Compatibility: Shelving systems can be designed to work with the FlexCargo bulkhead opening, allowing long items to pass through while maintaining organized storage on both sides.

For Vivaro-specific shelving solutions that maximize these dimensions, professional installation ensures optimal use of the 5.3-6.1m³ cargo space while maintaining safe access and load security.

Frequently Asked Questions

What is the internal height of a Vauxhall Vivaro?

The internal height of all Vauxhall Vivaro models is 1,397mm (55 inches). This applies to both L1 and L2 variants, as there's only one roof height option available.

Can a Vauxhall Vivaro fit a pallet?

Yes, the Vauxhall Vivaro can accommodate up to 3 Euro pallets thanks to its 1,628mm maximum load width. The 1,258mm width between wheel arches allows pallets to fit comfortably when loaded correctly.

What's the difference between Vivaro L1 and L2?

The main difference is length: L1 measures 4,959mm overall with 2,512mm load length, while L2 measures 5,309mm overall with 2,862mm load length. L2 offers 6.1m³ load volume compared to L1's 5.3m³.

How much weight can a Vauxhall Vivaro carry?

The Vauxhall Vivaro can carry between 1,121kg and 1,384kg depending on the model. The highest payload capacity comes with 3.1-tonne GVW models equipped with the 2.0L diesel engine.

Is there a high roof Vauxhall Vivaro?

No, the current generation Vauxhall Vivaro (2019-2025) is only available with one roof height of 1,940mm external and 1,397mm internal. Previous generations offered H2 high roof options.

What are the Vivaro's turning circle dimensions?

The Vauxhall Vivaro has a turning circle of 11.3m (L1) and 12.4m (L2), making it maneuverable for a medium van, especially in urban environments.

Conclusion: Choosing the Right Vivaro for Your Business

The Vauxhall Vivaro's thoughtfully designed dimensions make it an excellent choice for businesses requiring a versatile medium van. With load volumes ranging from 5.3m³ to 6.6m³ (with FlexCargo), class-leading payload capacity up to 1,384kg, and practical loading heights, the Vivaro delivers exceptional functionality in a manageable package.

Whether you choose the compact L1 for urban deliveries or the extended L2 for maximum cargo capacity, the Vivaro's dimensions are optimized for real-world commercial use. The addition of clever features like the FlexCargo system and dual sliding doors further enhances its practicality.

Ready to maximize your Vivaro's potential? Visit VanShelves.co.uk for professional shelving solutions designed specifically for your Vauxhall Vivaro, and explore our complete Vivaro collection to transform your van into an organized mobile workshop.
